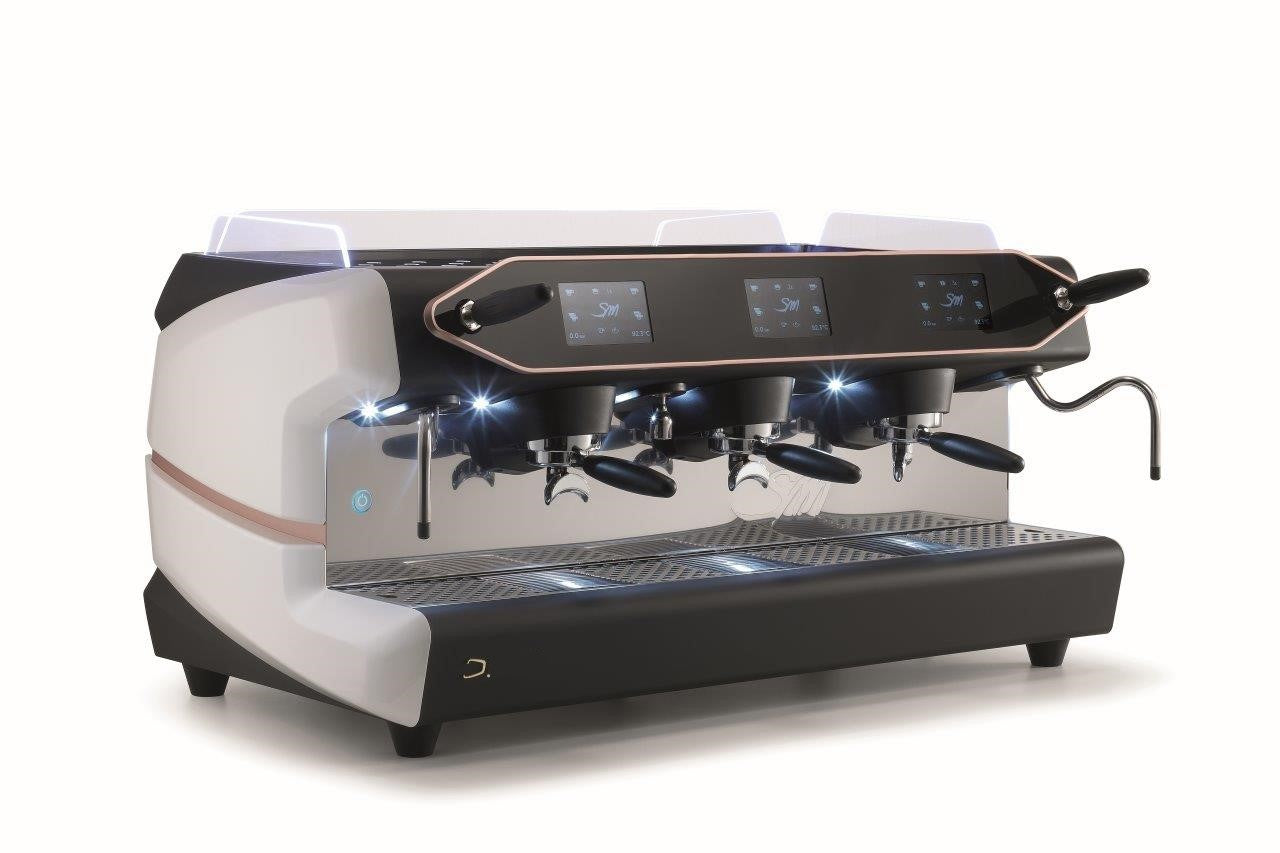

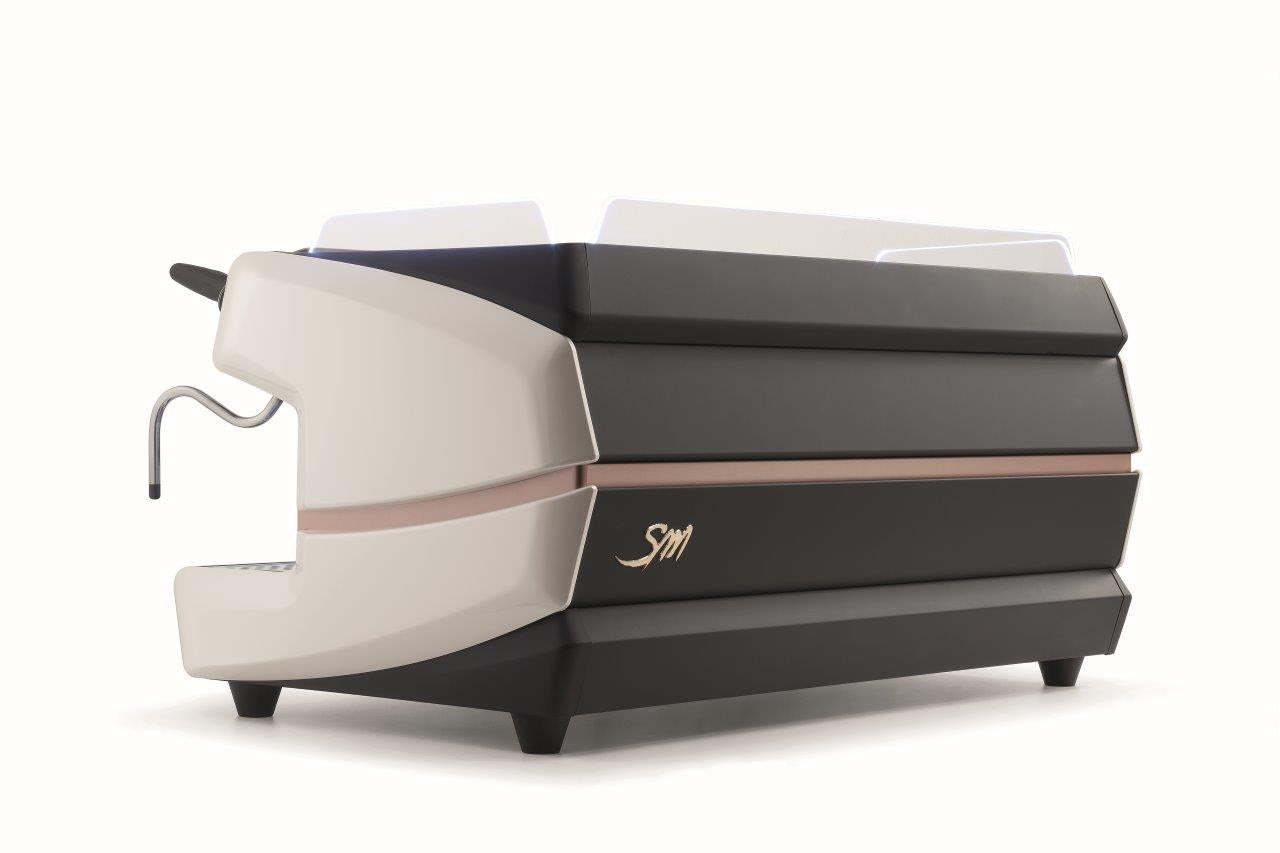

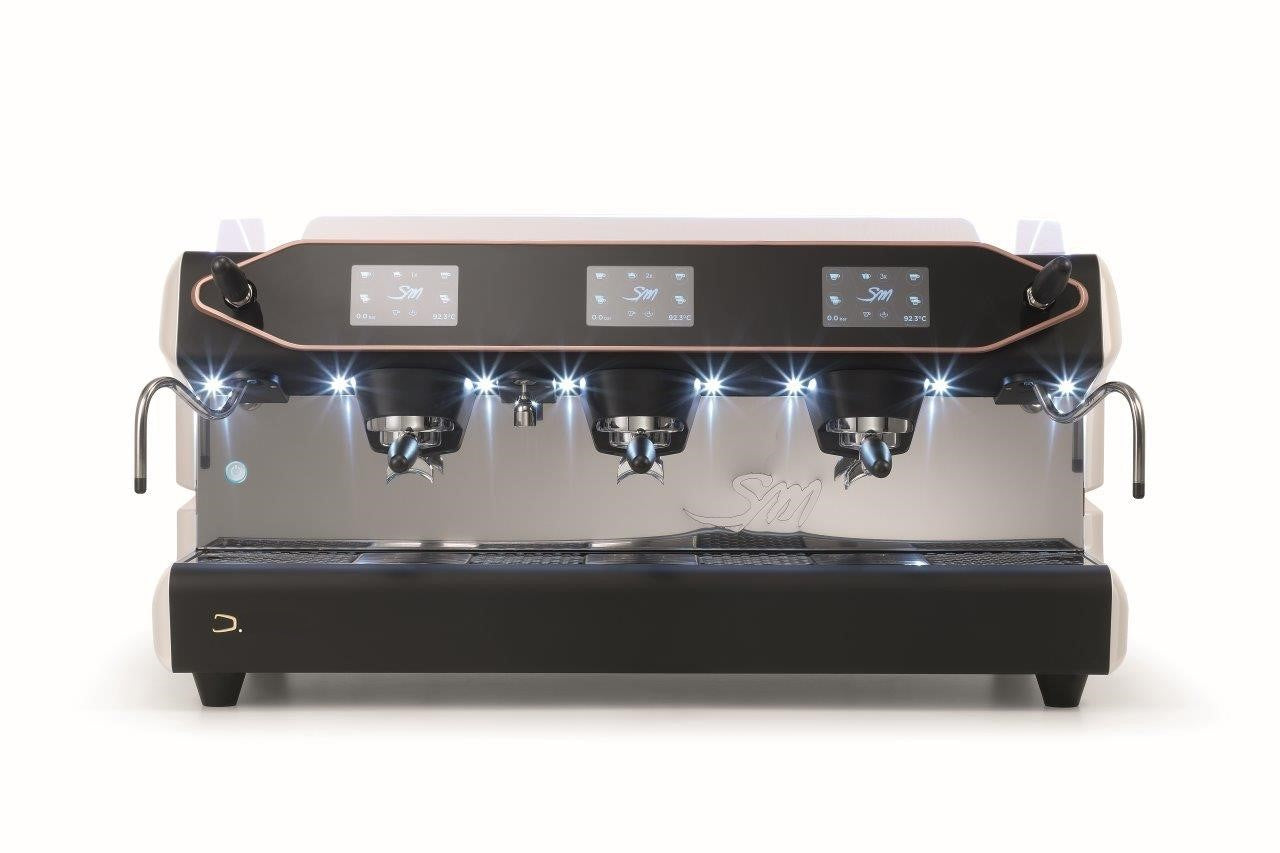

D. MB T Traditional Coffee Machine

DOWNLOAD BROCHURE

Multi boiler model which includes the “temperature profiling” technology and the 5” touch screen control panel. Form and function, beauty and performance, combined in an innovative machine that offers the best baristas in the world the pleasure of the challenge and of driving, the power to craft unique sensory experiences.


A product created in the spirit of elegance, tradition, and lightness. Sculpted, automotive-inspired lines, lacquered side-finishings, and a soft-touch rubber effect on the upper frame, in the lower base, and in the rear panelling. The functional parts feature anti-fingerprint polished steel, and copper-hued detailing (or purple, in the British Green model) frames the keypad panel and chassis.
The stainless steel cup-warming surface is contoured with white LED-lit illuminated profiles, which add to those positioned in the lower part, designed to provide perfect lighting to the worktop.

TOUCH TECHNOLOGY
Keypad with capacitive touch technology

Capacitive touch technology enables the management of commands without moving parts, creating a multi-sensory environment and a new relationship with everyday life. The replacement of traditional components with other innovative touch screens enables the elimination of mechanical and metallic actuators from traditional keypads ensuring higher reliability, lifespan, and protection from mechanical problems. Intuitive and simple, customisable and programmable, the touchpad combines its practicality with the charm and versatility of communication through today’s devices. The electronic principle behind the capacitive touch screen technology used in the keypads is based on controlling the variation of the electrical field acting on the screen in a similar way to the functioning of state-of-the-art smartphones and tablets.

APP TECHNOLOGY
Remote control through an app via email, bluetooth and wi-fi

The 100 Touch model comes with a dedicated APP (downloadable from this page on our website) to remotely control the machine in an immediate, simple, and intuitive way. Through this App the User, who is assigned a username and password, can not only set up, manage, and control the machine first-hand via Bluetooth, but they can also monitor and optimise its performance and efficiency through analysis of the recorded operational and statistical data, which are available even at a great distance to authorised recipients via email.

FTL: NEW STEAM DELIVERY SYSTEM
Fine Tuning Lever (FTL) is the patented innovation for mixed control of the steam nozzle.

Comprising a redesigned control lever that offers significant possibilities for regulating the flow of stream, FTL includes, in a single mechanism, both steam dispensing systems already present on La San Marco machines: with rotation of the handle, and levered, with vertical and horizontal motion.
The new device allows the barista to control, in an extremely accurate way,
the flow of steam during the preparation of milk-based products. The extreme precision in flow regulation was made possible thanks to the use of a cammed device that has replaced simple regulation via screw-lead screw.

FEATURES

Touch screen control panel with 5” display per group, with 4 programmable doses for each dispenser group plus a semi-automatic start/stop function button (max. 0.5 litres)

“Purge” button to wash the dispenser group before every brew

2x programmable doses of hot water (single and double)

Mixer for water temperature regulation

2 x lever-driven steam wands

Single-group boiler temperature and pressure display

Steam/hot water boiler temperature and pressure display
Automatic electronic temperature regulation for each individual group

Automatic electronic temperature regulation for steam/hot water boiler

Pressure profile programming (only for d. mbv)

Built-in 330 w water-cooled motor-pump (external 300 w air-cooled version on request) (only for d. mbv)

Single-group stainless steel boiler capacity 0.4 litres – heating element 1250w
Stainless steel steam boiler (2-group version): capacity 12 litres – heating element 3000w

Worktop lighting with white led technology

Smudge-proof stainless steel surfaces

Automatic wash cycle

Dose control during brew through three-colour filling bar (blue, green, red)

OPTIONALS
Standard machine with 2x available heights for the worktop 8 cm (raised 10 cm)

Electric cup-warmer, 100 w (2 groups) and 125 w (3 groups)

Automatic steam wand (autosteam)
Connection with smartphone or tablet via app with bluetooth/wi-fi

Fine tuning lever (ftl) system for precision steam control

Cool touch steam wand with peek terminal
Wooden handles
